OLEDuino, Mini Arduino with OLED Display 0.96Inch

This compact OLED-Arduino board is built around the reliable ATmega328 microcontroller and is designed as a complete standalone development platform for embedded applications. The board integrates a wide input voltage 24V-to-5V DC-DC converter, allowing direct operation from higher voltage power sources commonly used in industrial, automotive, and robotics applications.

An onboard Power LED provides instant power status indication, while the integrated LM1117 3.3V voltage regulator offers a stable 3.3V output for interfacing with low-voltage sensors and peripherals. The board also includes all required supporting circuitry for stable and reliable operation of the ATmega328.

For easy prototyping and external interfacing, male header connectors are provided to access all I/O pins, power input terminals, and regulated 5V and 3.3V outputs. The compact design makes the board suitable for DIY electronics projects, automation systems, robotics, sensor interfacing, and portable embedded applications.

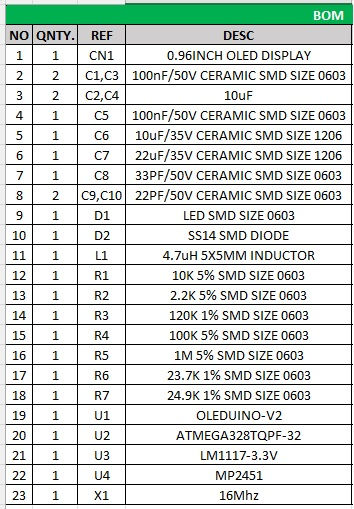

OLED-ARDUINO (1).pdf

Download PDF • 283KB

Schematic Download

OLED-ARDUINO (1).zip

Download ZIP • 51KB

Gerber File
