ROLL AXIS MINI TURN TABLE DRIVER

3 AXIS MINI MOTOR DRIVER NEMA17

FOCUS MOTOR INPUT SIDE 8 PIN CHINA CONNECTOR

BLACK GND PIN-1

BLUE GND PIN-7

RED 24V PIN-2

BROWN 24V PIN-3

ORANGE +5V DC

GREEN GND/ DRIVE-COMMON PIN6

VIOLATE STEP PIN8

YELLOW DIRECTION PIN5

]

RJ45 CAT6 CONNECTOR DRAGON FRAME

STEP/PULSE + WHITE-ORANGE

DIR + WHITE-GREEN

GND WHITE-BLUE

BROWN GND

LEADSHINE ENCODER MOTOR WIRING

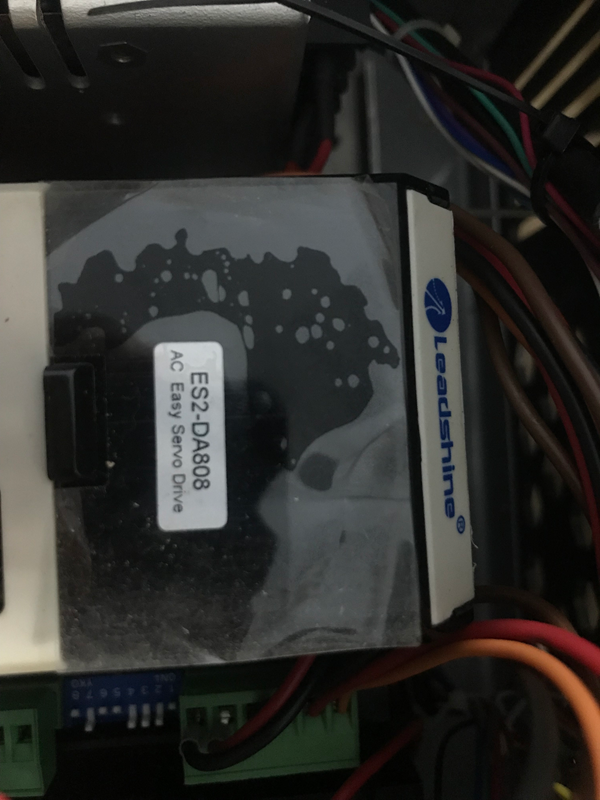

ES2-DA808 DRIVE TRACK ENCODER WIRING

EA+ DRIVE BLACK MOTOR BLACK

EB+ DRIVE RED MOTOR YELLOW

GND DRIVE WHITE MOTOR WHITE

EA- DRIVE YELLOW MOTOR BLUE

EB- DRIVE GREEN MOTOR GREEN

+5V DRIVE BLUE MOTOR RED
